ASTRAEUS

Prototype Solar Support Rover

Block Diagram / Flow Charts

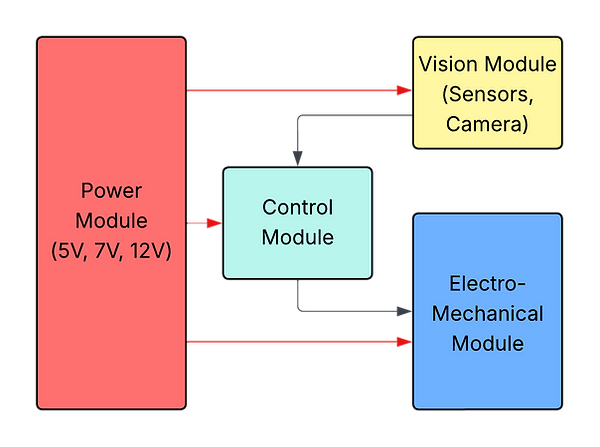

Astraeus Block Diagram


Full System.png

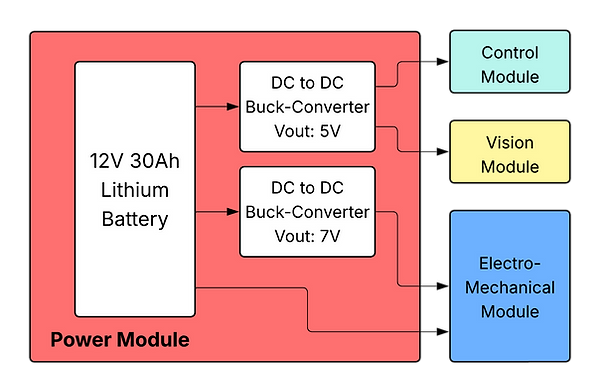

Power Module Block Diagram



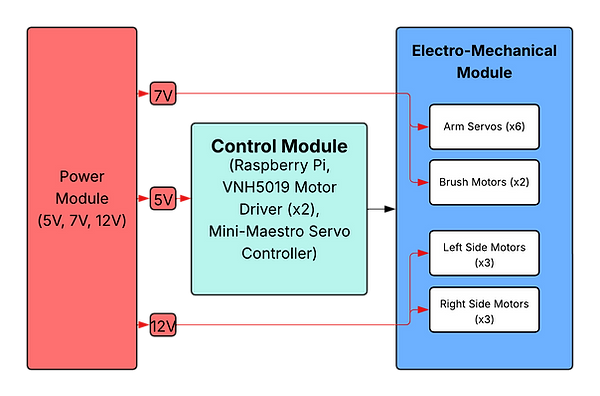

Electromechanical Block Diagram



Vision Module Block Diagram

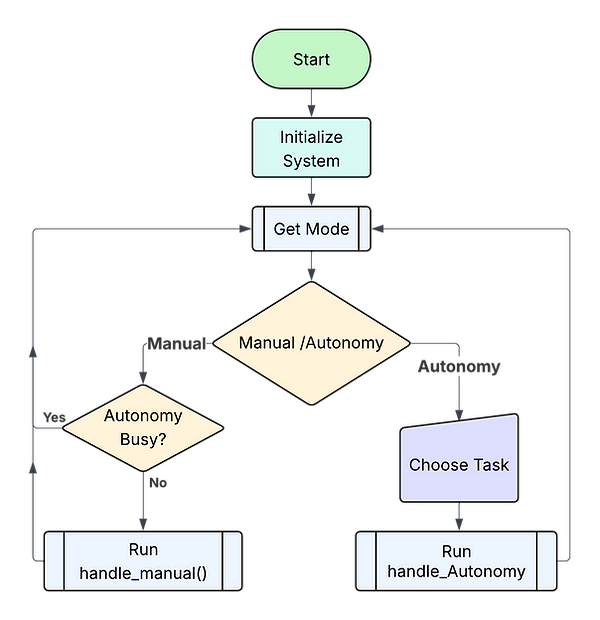

Main Flowchart


Main Flow.png


Manual Control Flowchart



Run Autonomy Flowchart

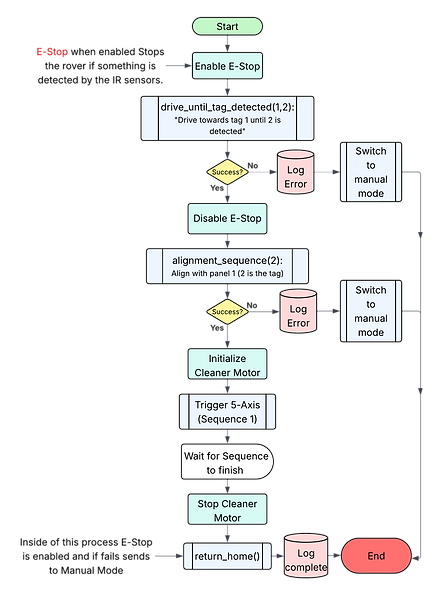

Cleaning Panel 1 Flowchart



Cleaning Panel 2 Flowchart

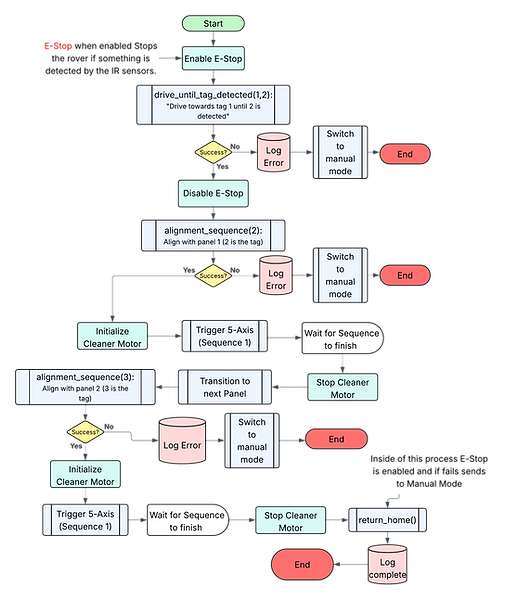

Clean All Flowchart
